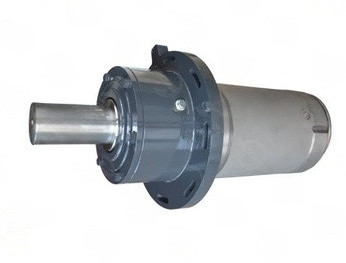

NS400 Pinion shaft housing assembled 442.9966-00
Другие запасные части и детали КМД (КСД) NS400 (Аналог CS440/S4000/S4800) по запросу:
452.1699-901 Main shaft assembly
442.8093-00 Top shell assembly
452.0655-901 Main shaft assembly (Ex. Liner)
442.8509-00 Top shell assembly (Ex. Liner)
442.7201-00 Cover
843.1267 Stud screw,SMS1460,M12×45
847.0147-00 Washer BRB 13×24 HB200 ISO 7089
845.0030-00 Lock nut M12 8 FZB ISO 7040
442.7140-00 Liner-Pin Shaft Arm
442.7141-00 Liner-Narrow Arm
900.0027-00 Elbow A4/90 3” A4 SMS 435
442.7146-01 Bottom shell bushing
853.0464-00 Pin CP 12M6×12 SMS 2374
900.0921-00 Swivel branch tee adapter 3/4”
900.1412-00 “Pipes Pipe KR 3/4”×70”
900.0276-00 Cover 3/4”
452.0243-901 Liners in Bottom Shell
442.7106-01 Dust collar
840.0634-00 Screw M6S 16×25 8.8 ISO 4017
442.7109-01 Ring
853.0464-00 Pin CP 12M6×12 SMS 2374
840.1281-00 Screw M6S 16×80 8.8 ISO 4017
847.0016-00 Washer BRB 17×30 HB200 ISO 7089
442.7110-01 Locating bar
442.7168-01 Shim T=0.1
442.7168-02 Shim T=0.5
442.7168-03 Shim T=0.7
442.7168-04 Shim T=1.0
841.0019-00 Screw MC6S 10×40 12.9
442.7170-01 Gasket
442.7108-01 Seal ring inner
840.0071-00 Screw M6S 16×65 8.8 ISO 4014
847.0060-00 Washer TBRSB 17×42
840.1073-00 Screws M6S 42×220 8.8
845.0322-00 Nut M6M M42 8 FZB ISO 4032
847.0171-00 Washer BRB 43×80 HB 200 SS 3576
899.0278-00 Protective Cap SW65 2 H20
442.9530-01 Screw M6S 42×100
899.0278-00 Protective Cap SW65 2 H20
442.8068-01 Eccentric
442.8067-01 Eccentric bushing 20+25+30+36
442.7142-01 Hub
442.7169-00 Ring
840.1157-00 Screws M6S 12×40 10.9 ISO4017
847.0147-00 Washer BRB 13×24 HB200 ISO 7089
442.9609-01 Key R25×14×250
841.0027-00 Screw MC6S 12×70 12.9
841.0025-00 Screw MC6S 12×50 12.9
847.0180-00 Washer DIN 137 B 13×24
442.7093-00 Gear and pinion set
442.7171-01 Key
442.7107-01 Eccentric wearing plate
853.0646-00 Pin Prym N 16×45
442.7163-01 Hydroset cylinder
840.0671-00 Screw M6S M24×90 8.8 ISO 4014
847.0124-00 Washer BRB 25×45 HB200 SS 3576
442.7166-01 Hydroset cylinder bushing
840.0019-00 Screws M6S 8×12 8.8
841.0019-00 Screw MC6S 10×40 12.9
847.0012-00 Washer BRB 8.4×16 HB200 ISO 7089
873.0892-00 Seals O-ring 532.26×6.99
442.9672-00 Piston
853.0119-00 Pin CP 25m6×60 SMS 2374
442.7122-01 Piston wearing plate
442.7121-01 Step washer
442.7112-00 Chevron packing
442.7167-01 Packing clamp plate
841.0266-00 Screw MC6S 12×25 8.8
442.9663-00 Hydroset cylinder cover
840.0671-00 Screw M6S M24×90 8.8 ISO 4014
840.0676-00 Screw M6S 24×140 8.8 ISO 4017
847.0124-00 Washer BRB 25×45 HB200 SS 3576
902.0605-00 Air Bleeder valve
873.0835-00 Seals O-ring 419.3×5.7 SMS1586
873.1276-00 Seals O-ring 453×5.7 SMS 1586
442.8783-01 Plug
873.0111-00 O-ring 44.2×3 SMS 1586
840.0023-00 Screws M6S 8×25 8.8
847.0012-00 Washer BRB 8.4×16 HB200 ISO 7089
840.1010-00 Screws M6S 12×16 8.8
442.7506-01 Pinion shaft housing
442.7136-01 Gasket T=0.5
442.7136-03 Gasket T=1.5
442.7136-02 Gasket T=0.8
868.0282-00 Bearings Spherical Roller 23122 CC/W33/C3
868.0804-00 Tapered roller bearing 452322 M2/W502
442.7130-01 Spacer inner
442.7131-01 Spacer outer
873.0779-00 Seals O-ring 84.1×5.7 SMS 1586
873.0399-00 Seals O-ring 99.1×5.7
873.1208-00 Oil seal ring 130×160×12
873.1208-00 Oil seal ring 130×160×12
442.9684-01 Bearing cover inner
442.7133-01 Bearing cover outer
840.0045-00 Screw M6S 12×30 8.8 ISO 4017
847.0147-00 Washer BRB 13×24 HB200 ISO 7089
840.0066-00 Screw M6S M16×40 8.8 fzb ISO4017
847.0016-00 Washer BRB 17×30 HB200 ISO 7089
442.7134-01 Gasket
442.7135-01 Gasket T=0.5
442.7135-02 Gasket T=0.8
853.0590-00 Spring Pin Prym N 8×28
442.9937-01 Pinion shaft
857.0337-00 Key 22×14×95 SMS2307
900.0022-00 Elbow 3/4 A4 SMS 435
900.2026-00 Magnetic plug 0606-12
873.0385-00 Tredo Nr.20 3/4”
442.7577-01 Oil level plug
873.0108-00 Seals O-ring 34.2×3 SMS 1586
442.7578-01 Pipe
855.0108-00 3_Retaining Rings Sga 85
840.1063-00 Screw M6S 16×120H 8.8
845.0009-00 Nut M6M M16 8 FZB ISO 4032
452.1635-901 Headcenter - main shaft
442.7117-01 Main shaft sleeve
853.0119-00 Pin CP 25M6×60 SMS 2374
442.7120-01 Main shaft step
855.0026-00 Retaining Ring Sga 100 SS1581
442.8089-01 Mantle A, M1
442.8070-01 Mantle B, M1
831.0016-00 Casting compound (kg)
831.0016-00 Casting compound (kg)
442.7105-00 Head nut with burn ring
442.8333-01 Inner head ring
442.7115-01 Burn ring
442.7102-01 Dust seal ring
442.7103-01 Retaining ring
442.7523-01 Retainer
442.7524-01 Scraper
840.0069-00 Screw M6S 16×55 8.8 ISO 4017
840.0071-00 Screw M6S 16×65 8.8 ISO 4014
847.0016-00 Washer BRB 17×30 HB200 ISO 7089
442.8059-01 Top shell EC2
442.9036-01 Liner
452.6197-001 Dowel 2172-00 D 36×32
442.8077-01 Fixing pin
442.8078-01 Bumper
442.8079-01 Bumper
900.1262-00 Elbow Adapter G 1/4 B×R 1/4
900.1030-00 Bushing RI-08-04 1/2”-1/4”
650.0086-11 Hose SAE 100 R1AT 1/4"×650"
914.0093-00 Lubrication Nipple AH R 1/4”
442.8090-01 Bracket
840.0021-00 Screw M6S M8×20 8.8 fzb ISO 4017
900.0243-00 Wrought iron pipe fittings Socket Rp 1/4
900.0652-00 Adapter G 1/4 B×G 1/4 B
442.9164-00 Spider cap
912.0114-00 Air Filter P10102 R1/4”
900.0134-00 Bushing 3/8"×1/4X"
900.2008-00 2_Pipe couplings Elbow 45 SMS 453-10
873.0838-00 Seals O-ring 499.3×5.7 SMS 1586
840.0079-00 Screw M6S 2×70 8.8 ISO 4017
847.0165-00 Washer TBRB 21×36 1370 SS 1466
442.9408-01 Spider bushing
840.0652-00 Screw M6S 20×90 8.8 ISO 4017
847.0132-00 Washer BRB 21×36 HB200 SS 3576
442.7193-01 Seals O-ring Oil seal ring
900.0981-00 Plug BSPT 1” hexagon
442.8111-00 Crusher chamber EC
442.8112-00 Crusher chamber C
452.1202-901 Crushing Chamber MC
452.0273-001 Concave ring MC
442.8114-00 Concave ring lower M1
442.8098-00 Concave ring lower M1
452.0274-001 Concave MC
442.8115-00 Concave upper
442.8099-00 Concave upper
831.0016-00 Casting compound (kg)
831.0016-00 Casting compound (kg)
831.0016-00 Casting compound (kg)
442.8082-00 Hydroset system
442.7255-92 Wrench and tool set
442.7255-91 Wrench and tool set
442.7255-90 Wrench and tool set
Основные | |
---|---|
Страна производитель | Китай |
Пользовательские характеристики | |
Материал изготовления | SA3071-010 |
- Цена: от 2 950 000 ₸
